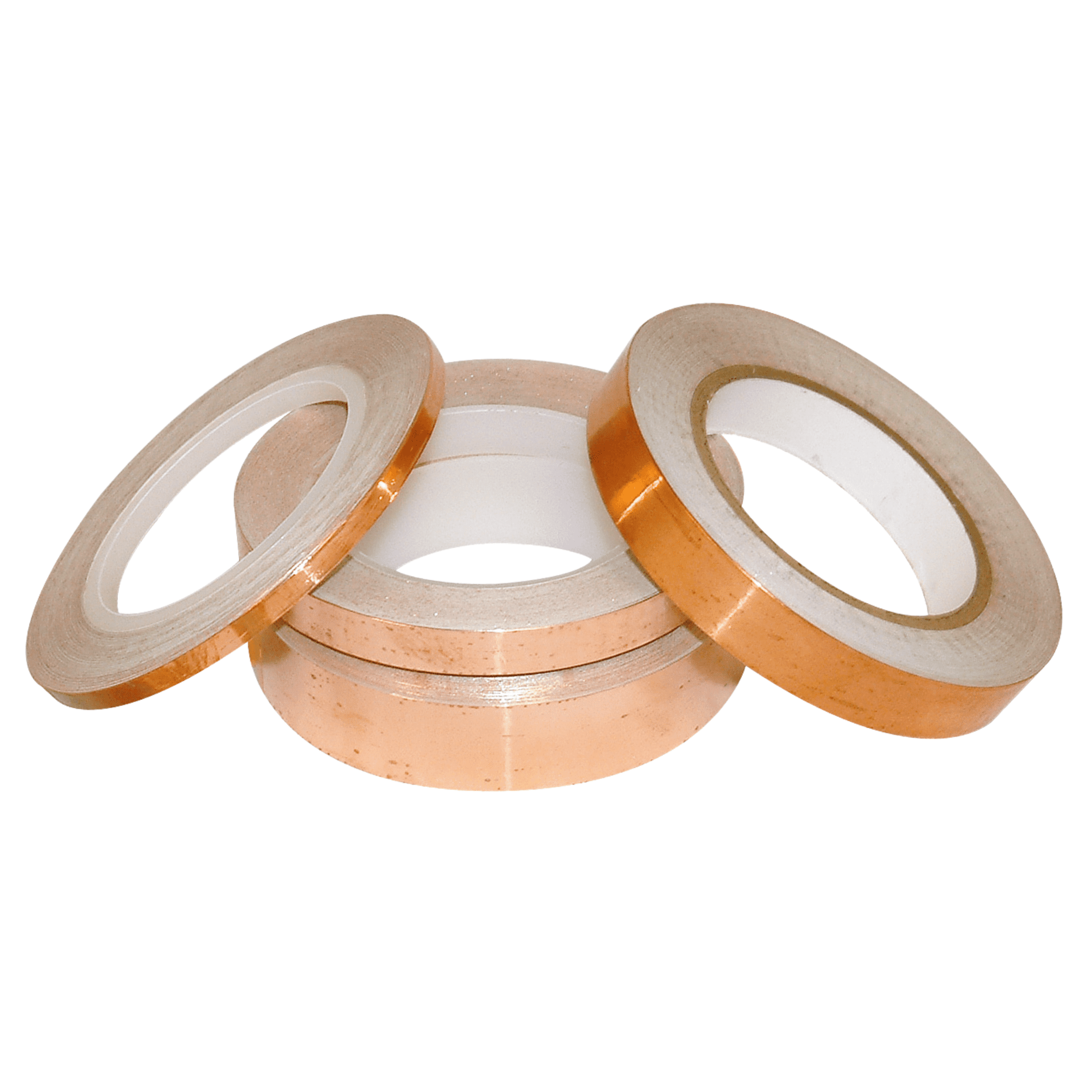

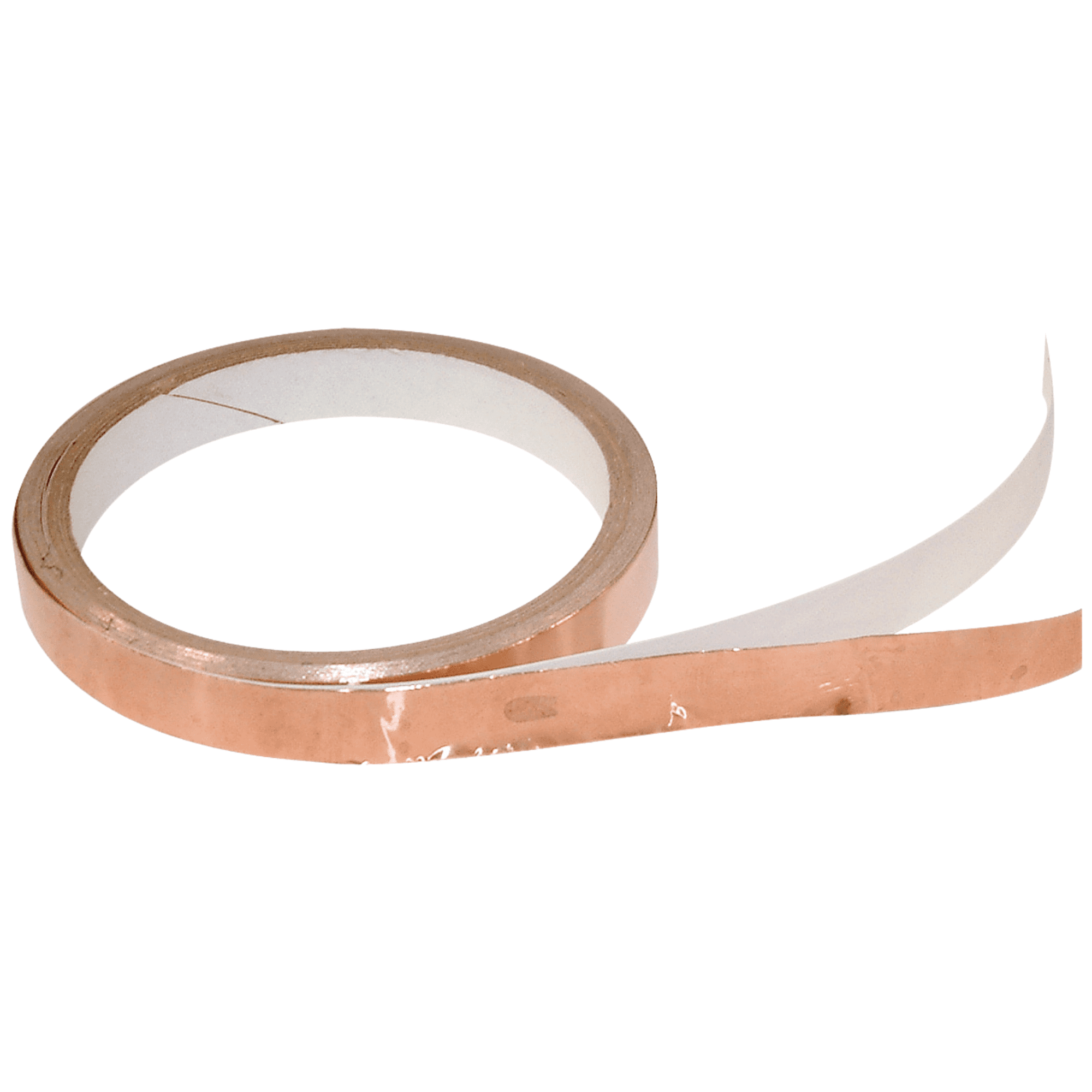

JVCC Copper Foil Tape [Conductive Adhesive] (CFL-5CA): 1/4 in. x 36 yds. (Copper)

<p><b>JVCC CFL-5CA Copper Foil Tape</b> is a 1 ounce rolled copper foil which provides excellent solderability and conformity. Used for RFI/EMI (electromagnetic interference/radio-frequency interference) shielding applications in the electrical/electronics industry (used to shield integrated circuit chips, cables, and motors). CFL-5CA is coated with an acrylic adhesive which is uniformly dispersed with conductive spheres. Its conductive adhesive is ideal for printed circuit board modification, security-alarm circuit repairs, and prototype wiring-board layout and design. Also for cable wrapping to provide EMI/RFI shielding, seaming of EMI/RFI shielded rooms for electrical continuity, static charge draining and for surface contact to non-solderable materials (e.g. aluminum or plastics). The copper foil sheet resistivity is 0.003 Ohms/square inch. Its aggressive acrylic adhesive system creates a superior bond. Annealed and non-tarnishing, bright copper color. Flammability: File #130121, UL 510, Section 4. Can also be used for decorative arts &amp; crafts projects.</p> NOTES: Sizes shipped will typically be the tape industry standard metric-cut sizes, i.e. 24mm for each 1 inch of nominal tape width ordered (rolls are approximately 5% narrower than the nominal size). This product's actual size is 6.3mm wide. This tape is typically cut to width from log rolls so most sizes ship on non-branded plain white cores. As with any adhesive tape product it is always the user's responsibility to determine that the product is suitable for their intended use; e.g. if you want to remove a product cleanly from a specific type of substrate please test on an inconspicuous area first. Warning: This product can expose you to chemicals including Toluene, which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/.<br><br><b>Technical Information</b><br>- Core: 3 inch diameter neutral <br>- Backing/Carrier: copper foil <br>- Adhesive: conductive acrylic <br>- Release Liner: 60# paper <br>- Standards Met: File #130121, UL510, Section 4 <br>- Thickness: 3 mils (carrier, adhesive) 1.6 mils (adhesive) 1.4 mils (carrier) <br>- Adhesion: 70 ounces per inch (to stainless steel test panel) <br>- Tensile Strength: 36 pounds per inch (longitudinal) <br>- Service/Operating Temperature: up to 311F <br>- Elongation: 6 % <br>- Electrical Resistance: 0.003 Ohms/sq. in. <br>

• JVCC CFL-5CA Copper Foil Tape is a 1 ounce rolled copper foil which provides excellent solderability and conformity. Used for RFI/EMI (electromagnetic interference/radio-frequency interference) shielding applications in the electrical/electronics industry (used to shield integrated circuit chips, cables, and motors). CFL-5CA is coated with an acrylic adhesive which is uniformly dispersed with conductive spheres.
• Its conductive adhesive is ideal for printed circuit board modification, security-alarm circuit repairs, and prototype wiring-board layout and design. Also for cable wrapping to provide EMI/RFI shielding, seaming of EMI/RFI shielded rooms for electrical continuity, static charge draining and for surface contact to non-solderable materials (e.g. aluminum or plastics).
• Thickness: 3 mils (carrier, adhesive) 1.6 mils (adhesive) 1.4 mils (carrier). Elongation: 6%. Carrier/Backing: copper foil. Adhesive: conductive acrylic.
• Electrical Resistance: 0.003 Ohms/square inch. Adhesion: 70 ounces per inch (to stainless steel test panel). Tensile Strength: 36 pounds per inch (longitudinal). Service/Operating Temperature: up to 311F.
• Standards Met: File #130121, UL510, Section 4. Release Liner: 60# paper. Core: 3-inch diameter neutral.
